Comms Server#

An image of two symbolically secured and connected smartphones

We are Quantum Safe!

A complete Post Quantum Cryptopraphy (PQC) communication solution

A complete solution for quantum safe communications#

Easily deploy and manage laptops, tablets, and phones on your own private network - self-hosted or cloud-hosted fully under your control.

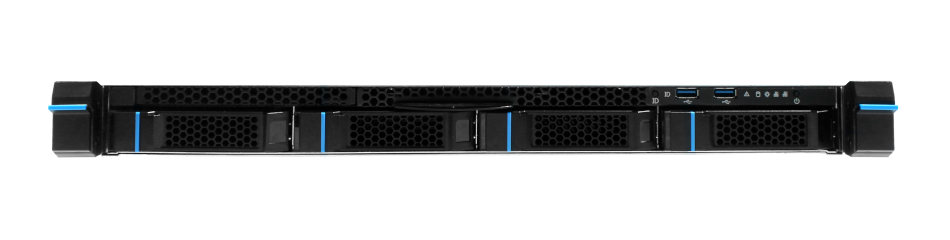

A front-facing image of Librem PQC Comms Server hardware

On-Premise Post Quantum Cryptography#

The PQC Comms Server is fully hosted In-Domain and On-Premise. It is Network Agnostic. Once installed on your network, it lets you connect client devices for Quantum Safe communications.

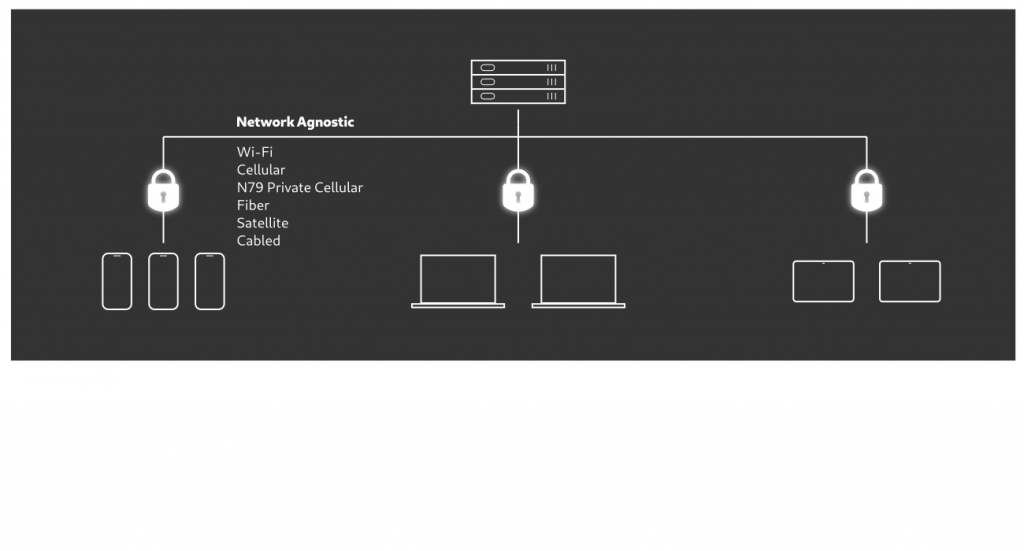

A Librem PQC Comms Server block diagram

Drop-in ready to deploy!#

Purism’s Liberty Phone with Made in USA Electronics - as your secured end device - encrypts all data and communication with the latest (published August 2024) NIST Standard FIPS 203 for post-quantum cryptography, enhanced by the fact the secret never leaves the phone.

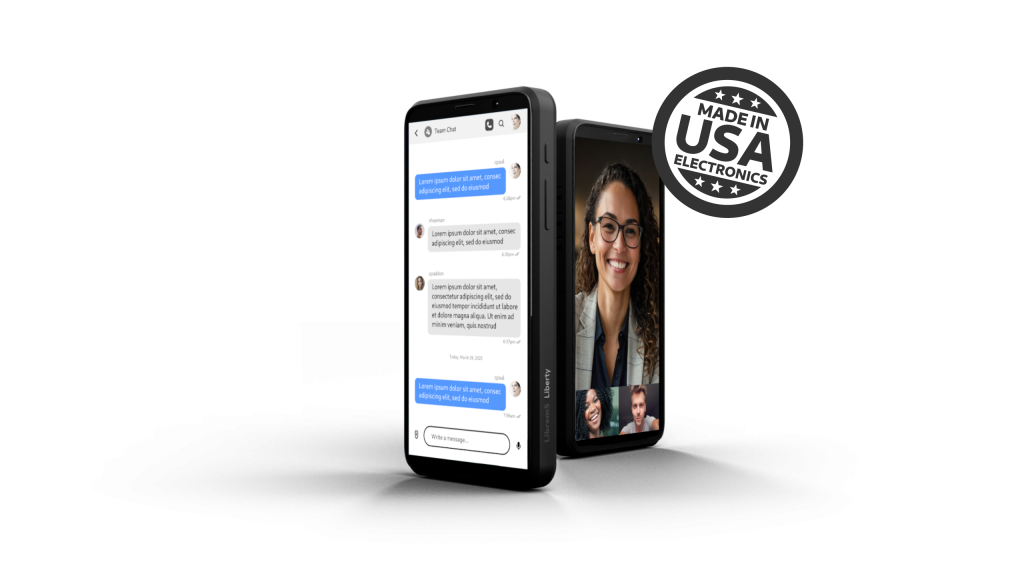

A Liberty Phone with a Made-in-USA Electronics logo

You control everything, including the cryptographic keys, the devices, the SIMs, and the network, creating an easy-to-deploy drop-in private PQC solution.

Documents#

Librem PQC Comms Server Overview.

Hardware Specifications#

Form Factor

1U Rackmount

Dimensions

W 17.2” (437mm)
H 1.7” (43mm)
D 21.5” (546mm)

Net Weight

21 lbs (9.5 kg)

Gross Weight

26 lbs (12 kg)

Processor

One Intel Core i7 processor, LGA1151
Up to 4.7GHz, TDP support 65W
8 Cores, 12 MB cache

Main Memory

4x DDR4 DIMM slots
Up to 128GB DDR4 UDIMM

On-board Network Controllers

Dual Gigabit Ethernet with Intel i210
Realtek RTL8211E PHY (dedicated IPMI)

On-board IPMI

Support for Intelligent Platform Management Interface 2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

On-board Video

BMC integrated Aspeed AST2500

Expansion Slots

1x M.2 PCIe 3.0 x4 / SATA 3.0
M Key 2230/2242/2260/2280

LAN I/O

2x GbE LAN ports, 1 optionally shared with IPMI
1 Dedicated IPMI LAN port

USB I/O

4x USB 3.2 Gen2 (rear)
2x USB 3.2 Gen1 (front)
2x USB 2.0 (internal header)

Video Output

1 VGA port

TPM

TPM 2.0

Drive Bays

2x 2.5” internal fixed drive bays
4x hot-swap 3.5” SATA 3.0
1x slim optical disc drive bay

Power Supply

350 W redundant power supplies

Fans

3x 40mm chassis fans
1x CPU fan
